Universal Slitting Shears

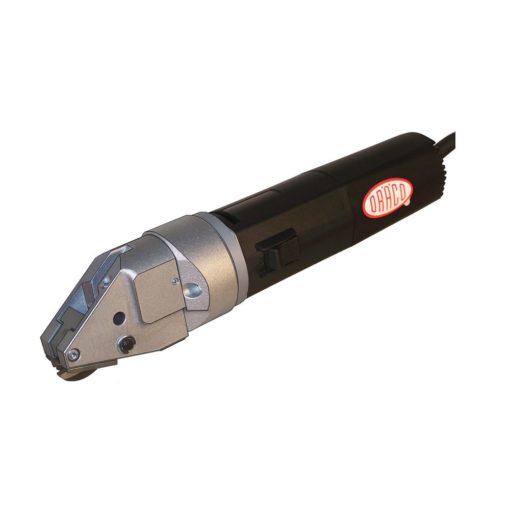

Draco Universal Slitting Shears for cutting up to 2.0 mm steel.

The SD7-1 is a very manoeuvrable shear and can make short turns (smallest inner radius 50 mm).

This is therefore the ideal shear for zinc processors, interior construction, body shops, garage companies and damage repair!

For example, perfect for the installation of sunroofs or in the ceiling construction for the installation of spotlights.

Knives and jaws can be reground. These light, compact and robust shears are used both in assembly and in mass production by means of linear guide systems can be used.

Description:

• Cutting without distortion or straightening of formed parts
• Burr free cutting
• No finishing of the edges is required
• Accurate cutting along a marked line
• Single-side trimming is possible
• Working speed up to 5 m/min
• Cutting of U-,C- and L-profiles
• Clear view to scribed line or template
• Long life tool
• Easy, one hand, operation
• Simple and safe to use
• Noise under limit regulations
• An insulated and suppressed motor
• Can cause no injury while in motion
• Long life tools – series 2000.
• Almost no maintenance necessary
• Knives and jaws regrind able
• Parts are standardized and interchangeable
• Stationary cutting in a vice possible
• Rugged tools for higher cutting capacity
• Ideal for: sheet-metal workshops

Capacity:

Steel: 400 N/mm², 2.0 mm

Stainless Steel: 600 N/mm², 1.5 mm

Stainless Steel: 800 N/mm², 1.3 mm

Aluminium: 250 N/mm², 3.0 mm

Accessories:

Replacement Knife – 371401S7

Set of Jaws – BG37222

Knife-Pin Set – BG35155

Adjustable Guide S/01 for up to 100mm – 10059

Adjustable Guide S/01 for up to 250mm – 10060

Adjustable Guide S/01 for up to 500mm – 10061

Metal Box – 18000

Contact us for more information on replacement parts!
