Schroeder Mobile Sheet Metal Folding Machine BAM

Contact us for pricing and delivery times!

Add to wishlist

SKU: BAM Category: Brakes Tag: Schroeder

The segment folding machine BAM 1000 and BAM 2000 are small and light, but offer very high functionality and mobility.

Details

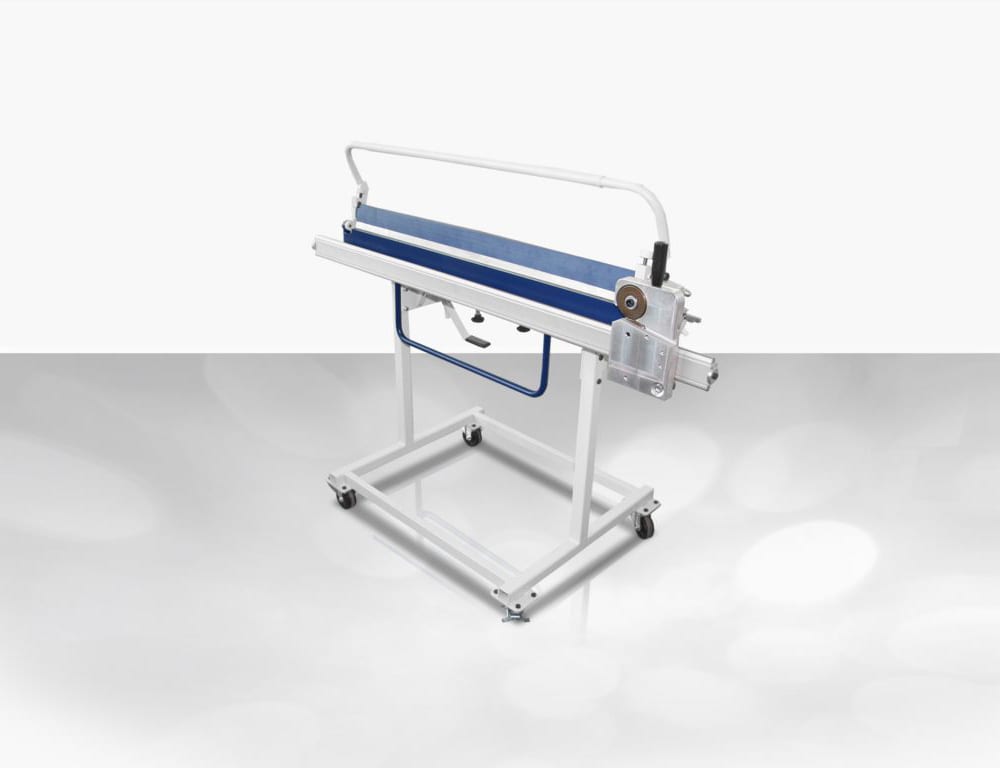

BAM 1000

Quick rotating clamping beam with sharp blade
and goat’s foot blade for narrow bendings
Folding blade 15 mm
Easy to disassemble and transport
Quick clamping beam
Sheet support and back gauge system 500 mm
Cutting device incl. guide rail for max. sheet thickness 0,8 mm St37
Stand with 4 castors:
2 fixed and 2 steering castors, lockable
Angle indicator

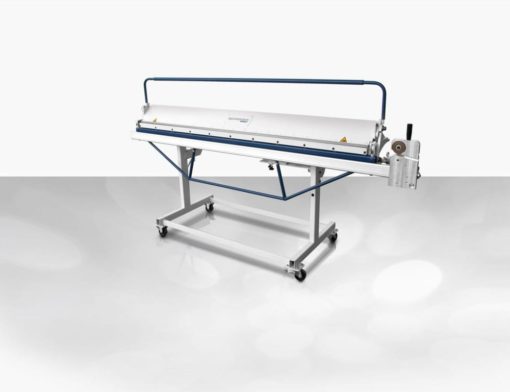

BAM 2000

Sharp-nose blade 20°, exchangeable
Folding blade 15 mm, exchangeable
Folding beam with crowning device
Folding beam adjustable in linear and vertical direction
Clamping beam with counterbalance adjustment
Quick clamping beam with one-hand operation
Sheet support and back gauge system 750 mm
Cutting device incl. guide rail for max. sheet thickness 0,8 mm St37
Removeable stand with 4 castors:
2 fixed and 2 steering castors, lockable
Angle indicator

Technical Data

type	capacity	working length	clamping beam stroke
	[mm]	[mm]	[mm]
1000×0,8	0,8	1020	45
2000×0,75	0,75	2020	65

Additional Options

Adjustable beading device without beading and twist clamp
Beading rod 12 mm, 14 mm or 16 mm incl. one set of twist clamp
