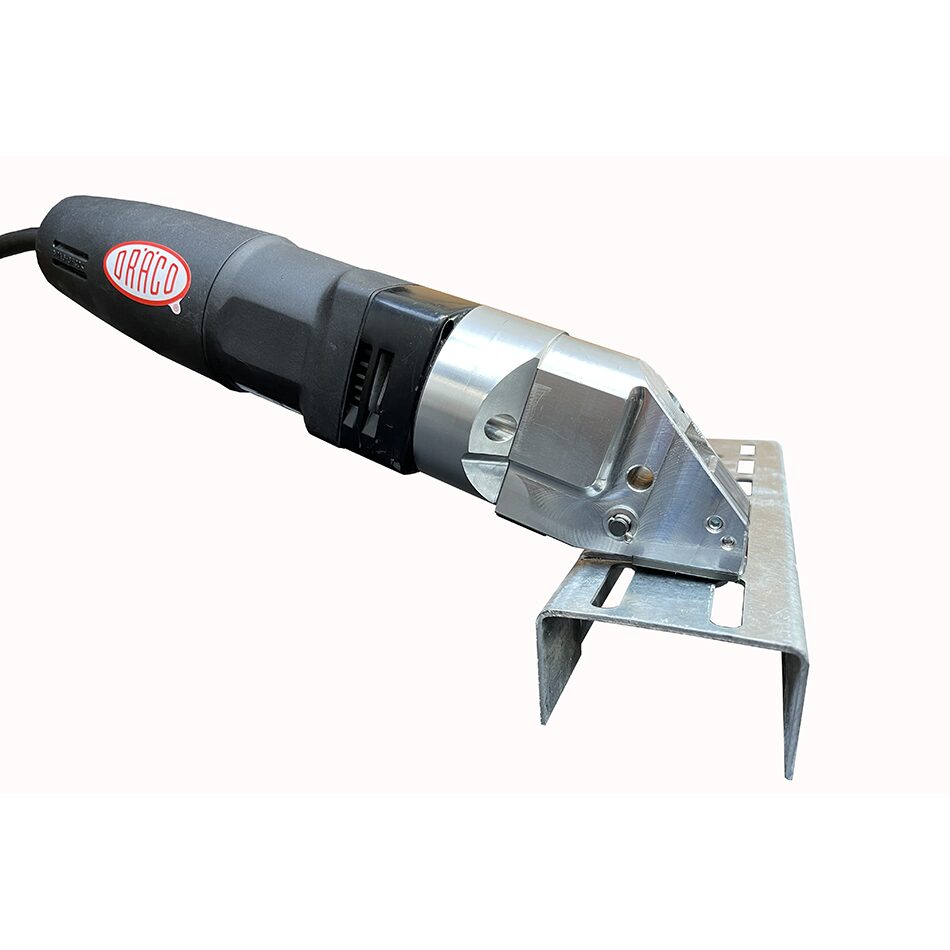

Metal Stud & Stainless Steel Shears

The blades on these Metal Stud & Stainless Steel Shears are especially for working stainless steel up to 1.5 mm (800N/mm²). This machine is particularly suitable for the discerning stainless steel processor (for example food service, catering equipment and large-scale kitchen, handrail and staircases, thermo products and chemical and pharma plants) and in the finishing process.

Due to the high capacity also ideal for shortening UA reinforcement ribs (2.0 mm metal stud). The cutter works without sparks (saves the dangerous work with the angle grinder) and can therefore also be used in the building. No deformation of the profile and no burr formation.

The assembly in the vice is made possible by means of flat sides on the shear head. Knives and jaws (side knives) can be reground.

Description:

• Cutting without distortion or straightening of formed parts
• Burr free cutting
• No finishing of the edges is required
• Accurate cutting along a marked line
• Single-side trimming is possible
• Working speed up to 5 m/min
• Cutting of U-,C- and L-profiles
• Clear view to scribed line or template
• Long life tool
• Easy, one hand, operation
• Simple and safe to use
• Noise under limit regulations
• An insulated and suppressed motor
• Can cause no injury while in motion
• Heavy duty metal-shear for cutting stainless steel
• Standard knife for stainless steel
• The metal-shear for steel studs up to 2 mm, 14 ga.
• The ideal shear if cutting maximum thickness in continuously operation
• Stationary cutting in a vice possible

Capacity:

Steel: 400 N/mm², 2.3 mm

Stainless Steel: 600 N/mm², 1.8 mm

Stainless Steel: 800 N/mm², 1.5 mm

Aluminium: 250 N/mm², 3.0 mm

Accessories:

Replacement Knife – 035151

Set of Jaws – BG35146

Knife-Pin Set – BG35055

Metal Support Roller – BG10077

Metal Box – 18000

Contact us for more information on replacement parts!
