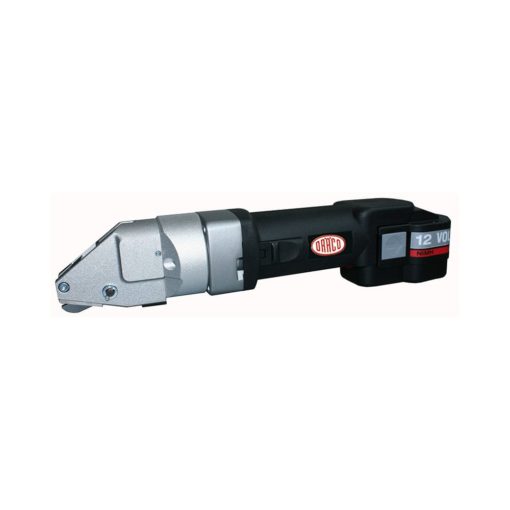

Draco Cordless Metal Shear Ni-Cd AK 3520 is a universal cutting device for the electrical installer, apparatus and control cabinet construction. The solution for cutting cable trays, cable tray lids, cable ladders, trapezoidal profile rungs, cable protection channels, stiffening UA profiles, wide span beams, cassettes, panels etc. The profile shears effortlessly cuts across angles and profiles.
The cutter works without sparks (saves the dangerous work with the angle grinder) and can therefore also be used in the building. No deformation of the profile and no burr formation.
Shear blade head with regrindable and exchangeable blades.
The cordless system 3000:
- Ergonomic designed motor
- Power Plus motor: 30% more power
- 2,0 Ah 24,0 Wh highest quality, long life battery packs
- Cutting up to 120 meters with one battery charge
- Universal super-rapid charger SRC (15 min)
- Charger is suitable for charging all systems 3000 battery packs
- Computer controlled pulse charging technology charges batteries quickly and gently,
- Leading to a threefold increase in life of battery packs
- Fail-safe polarity protection
- Fully automatic functions: continuous temperature monitoring and switching from quick charge to trickle charge make overcharging impossible!
- LED control panel reports charging status or malfunction
- In conjunction with battery charger SRC, batteries can be charged 3000 times or more
- No memory effect
Steel 400 N/mm²: 2.0 mm
Stainless Steel 600 N/mm²: 1.3 mm
Stainless Steel 800 N/mm²: 1.0 mm
Aluminium 250 N/mm²: 2.5 mm
Replacement Knife – 035201
Serrated heavy duty Knife – 035271
Set of Jaws – BG35020
Knife-pin Set – BG35055
Adjustable Guide S/01 for up to 100mm – 10059
Adjustable Guide S/01 for up to 250mm – 10060
Adjustable Guide S/01 for up to 500mm – 10061
Charger RC (60 min.) 12V/230V – 3129
Battery MXL 12 – 31298S3
Charger SRU for USA/CDN 12V/115V – 31301
Transport Box – 42861
Contact us for more information on replacement parts!

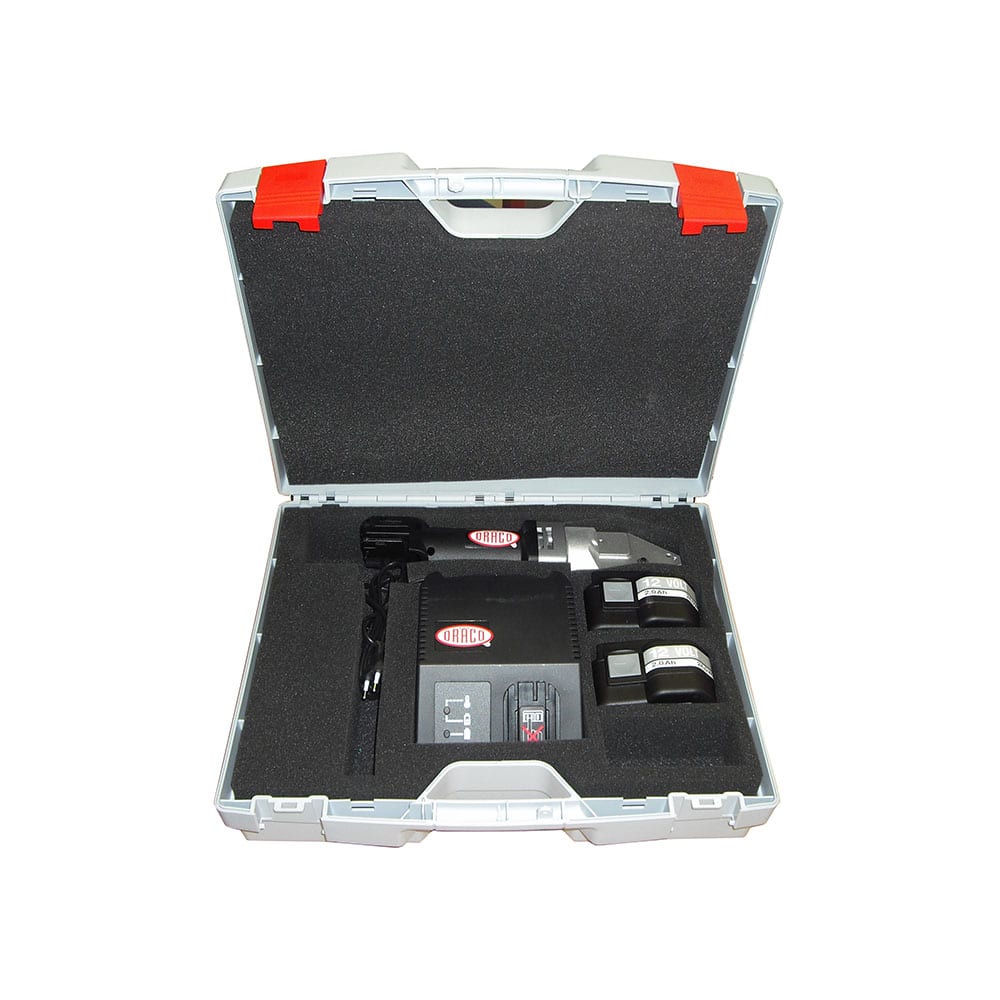

Also available as 5 pc. set in transport box, which includes:
1 Cordless Metal Shear Ni-Cd AK3520
2 Batteries MXL 12
1 Charger RC
1 Transport box
